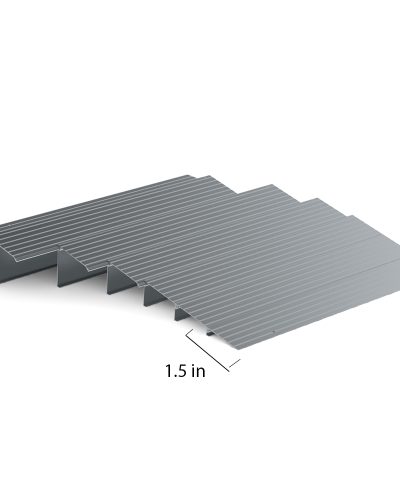

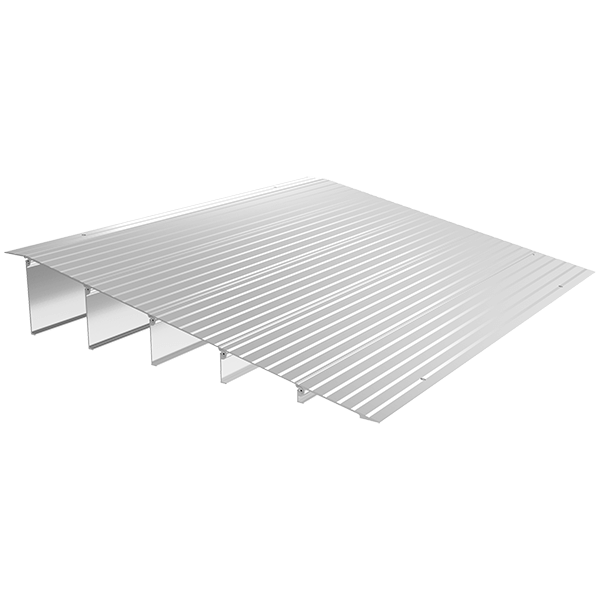

TRANSITIONS® MODULAR ENTRY RAMP

$36.99$150.99

FREE Delivery within 40 miles of Hickory, NC!

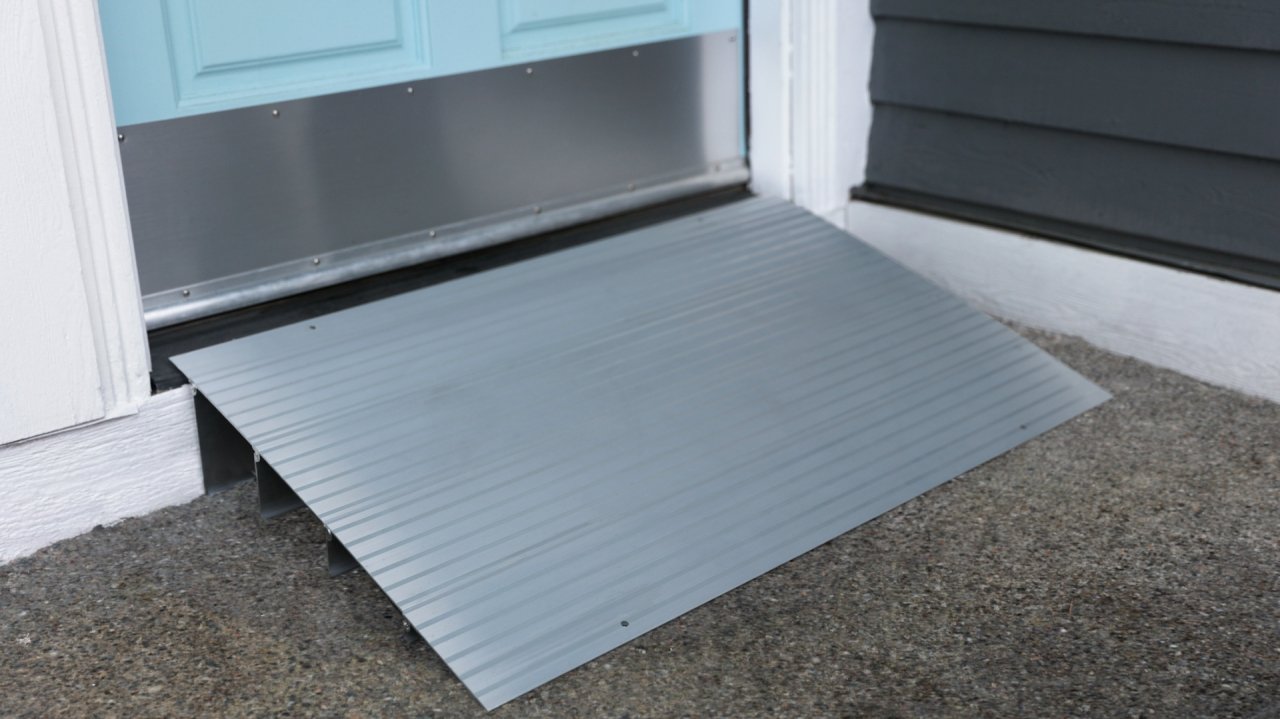

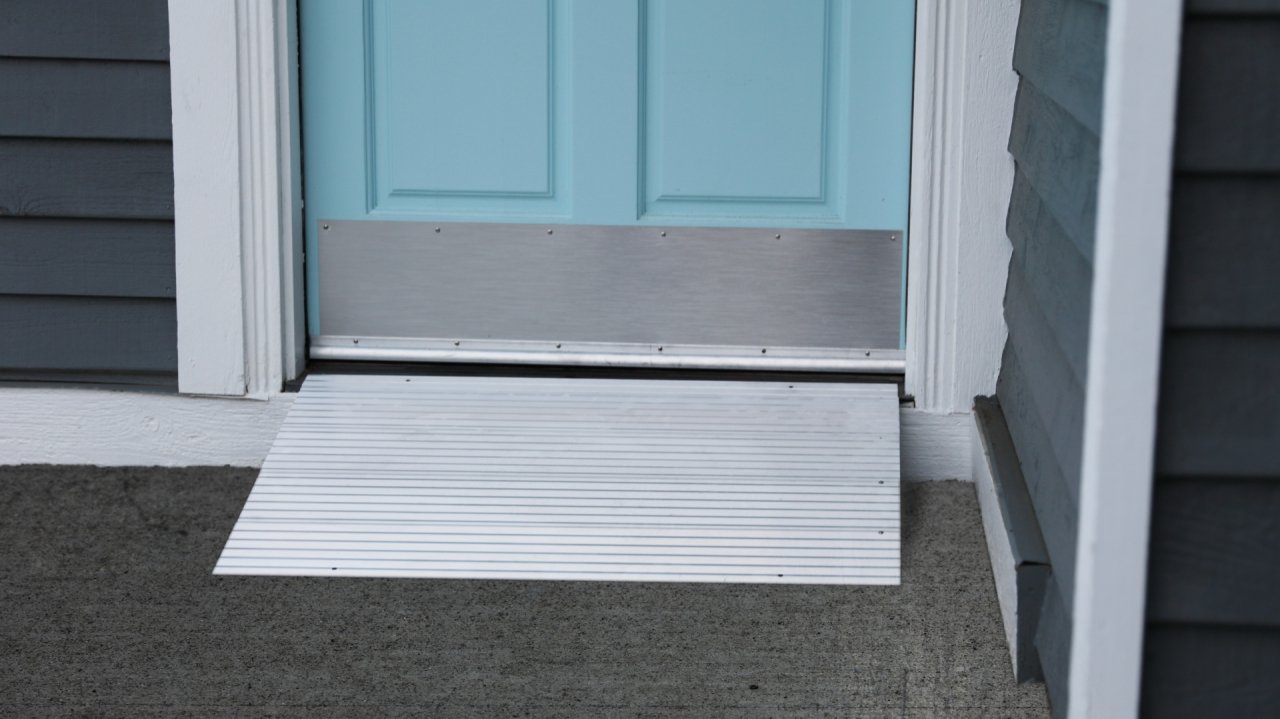

The TRANSITIONS® Modular Entry Ramp is perfect for doorways to create a smooth, sturdy, and seam-free surface for wheelchair, scooter, walker, and cane users. It is made with high-strength aluminum that will never rust or corrode and has an extruded slip-resistant surface for superior traction. Ideal for doorways, sliding glass doors, and raised landings. It is lightweight and easily transported from one place to the next for added convenience. Browse through the tabs below to learn more.

Add to wishlistAdd to compare
SKU: N/A Categories: ,
RISE

TMER1, TMER1.5, TMER2, TMER3, TMER4, TMER5, TMER6

Features

MADE OF ALUMINUM

Made from high-strength aluminum that will not rust or corrode and can support up to 700 pounds.

SLIP-RESISTANT SURFACE

Features a safe, extruded slip-resistant surface for superior traction.
Modular Entry Ramp

ADJUSTABLE FLAP

This pivoting flap attaches to the top of the ramp to provide ¼” of additional adjustability.

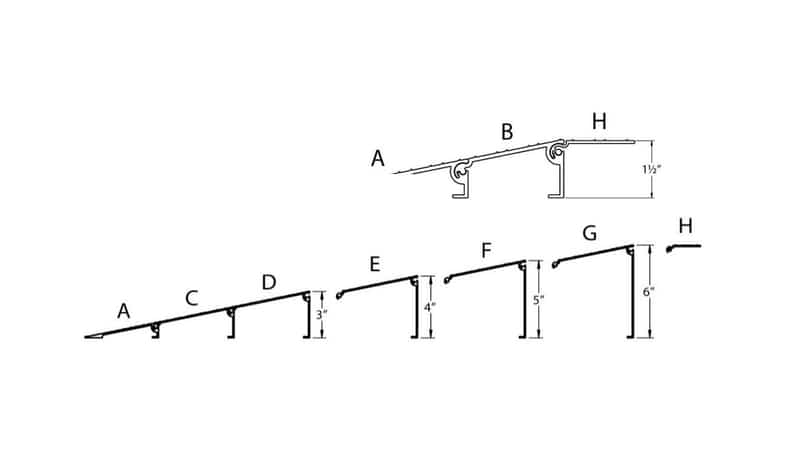

MODULAR DESIGN

Easily add or remove interchangeable extensions as needed to accommodate your threshold. Available in 1, 1½, 2, 3, 4, 5, and 6 inch heights. See specifications tab for accommodating height ranges when using the Adjustable Flap.

Specs

TMER1

TMER1.5
TMER2
TMER3
TMER4
TMER5
TMER6
Made Of Aluminum

Slip-Resistant Surface

Modular Design
Usable Size ( L X W X H )
6.5″ x 34″ x 1″
9.5″ x 34″ x 1.5″
12″ x 34″ x 2″
17″ x 34″ x 3″
22.25″ x 34″ x 4″
27.5″ x 34″ x 5″
32.75″ x 34″ x 6″
Usable Height Range *
.75″ – 1.25″
1.25″ – 1.75″
1.75″ – 2.25″
2.75″ – 3.25″
3.75″ – 4.25″
4.75″ – 5.25″
5.75″ – 6.25″
Weight **
3 lbs.
5 lbs.
5.5 lbs
8 lbs.
11 lbs.
15 lbs.
20 lbs.
Weight Capacity
700 lbs.
700 lbs.
700 lbs.
700 lbs.
700 lbs.
700 lbs.
700 lbs.
For Wheelchairs & Scooters


NOTE: Weights and dimensions are approximate and subject to change.

*Consult your mobility equipment’s owner guide for the proper slope/incline. Never exceed its recommendations.

** Weights are approximate and may vary.

For additional specs and dimensions see “Documents”

Documents

Although it’s our intent to keep all documents current, some documents are subject to change and may take time to update. If you are unsure whether you have the most current revision or if your product is different, contact our technical support.

Videos

FAQ's

With the adjustable feet, what is the minimum and maximum height of threshold it can accommodate?

The TAER 12 height range is 1.92” to 2.958”. The TAER 24 comes with two different adjustable sized feet. The shorter set provide a height range of 2.154” to 3.375” and the taller ones provide a height range of 3.178” to 4.361”. The TAER 36 height range is 3.681” to 5.836”.

Does the plate at the bottom of the ramp move?

Yes, the TAER has an adjustable bottom transition plate so that it can provide smooth ramp-to-ground and ground-to-ramp transitions.

Does this ramp require assembly?

Yes, simply attach the two adjustable feet and set them to the necessary height.

Do the feet move?

Yes, the feet swivel, allowing this ramp to adapt to uneven surfaces.

How do you keep the ramp from moving?

There are pre-drilled holes for anchoring in the bottom transition plate and hardware is provided for drilling into a wood surface.
