TRANSITIONS® ANGLED ENTRY RAMP

$77.99$166.99

FREE Delivery within 40 miles of Hickory, NC!

The TRANSITIONS® Angled Entry Ramp is a portable, stand-alone threshold ramp featuring independently adjustable legs with swivel feet, allowing for vertical adjustment ranging from 1-3/8 to 5-7/8 inches in height. This self-supporting aluminum threshold ramp is ideal for doorways that swing in and out, uneven surfaces, or single step rises. Browse through the tabs to learn more about the Angled Entry Ramp.

Add to wishlistAdd to compare
SKU: N/A Categories: ,
SIZE

TAER 12, TAER 24, TAER 36

Features

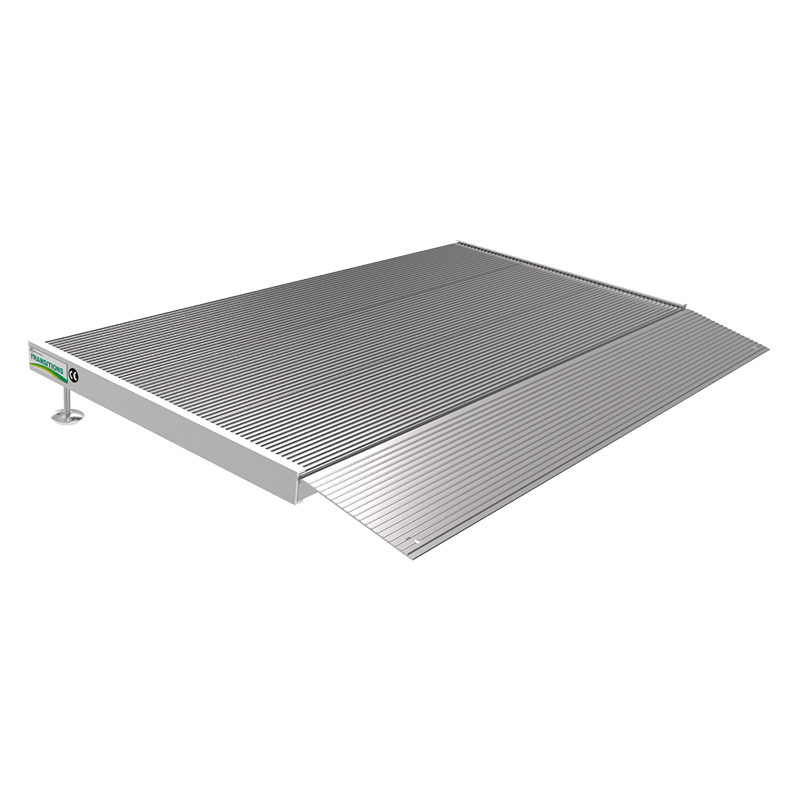

Angled Entry Ramp side view

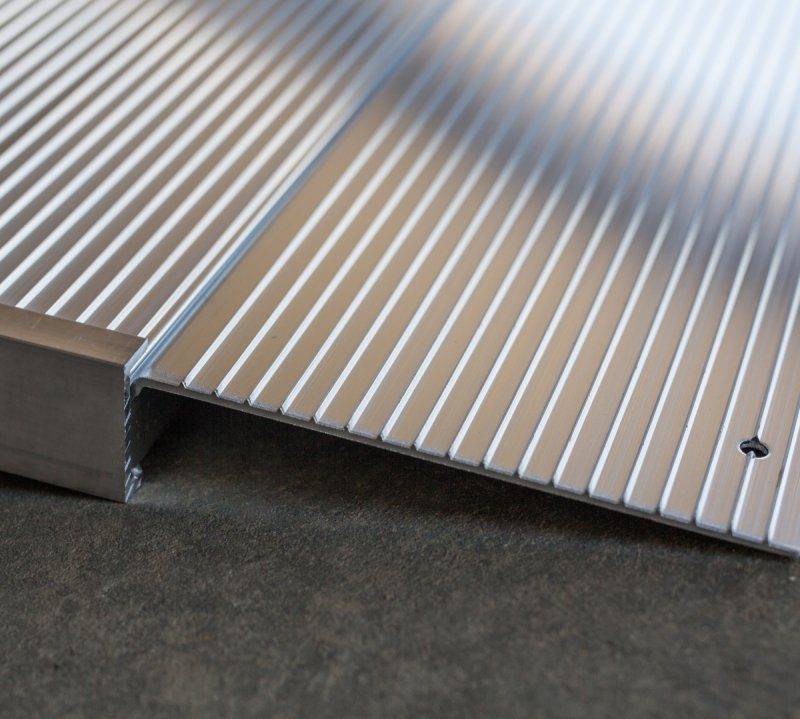

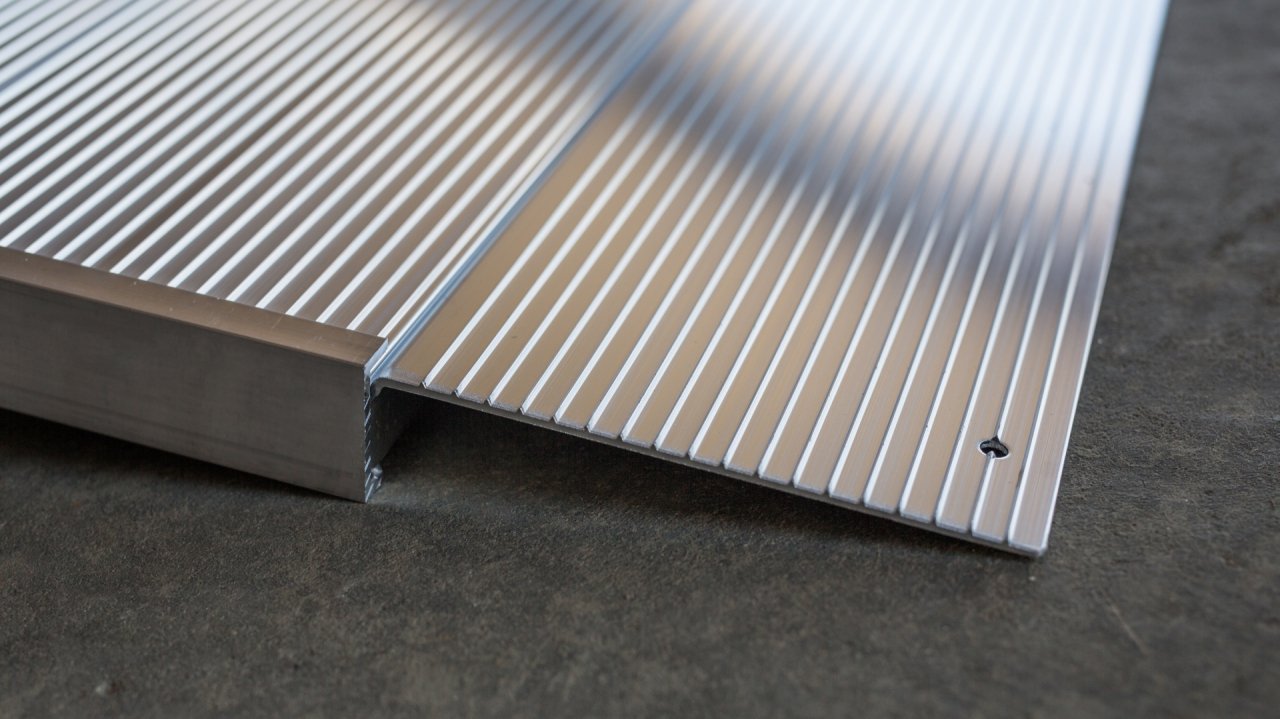

EXTRUDED TREAD SURFACE​

Offers slip-resistance to ensure traction in any weather.

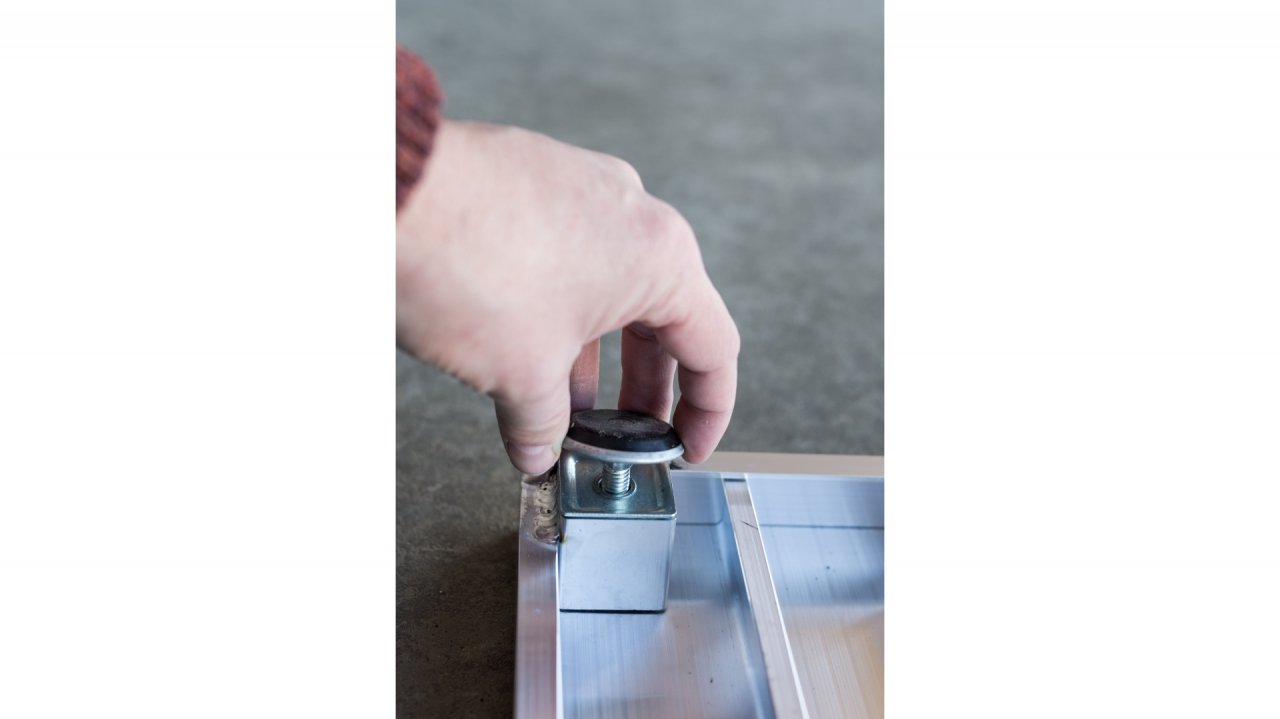

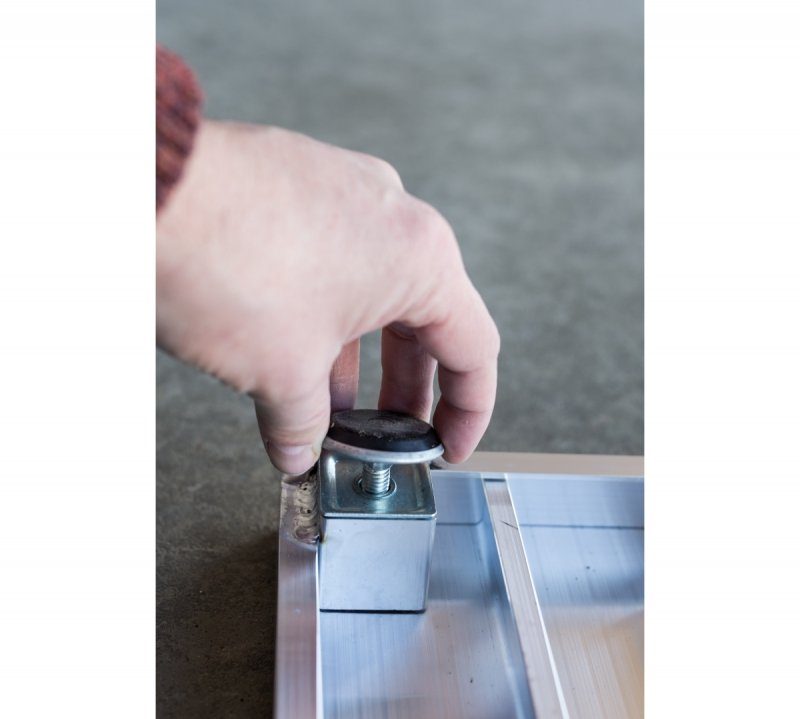

ADJUSTABLE LEGS WITH SWIVEL FEET

Allows for approximately 2 inches of vertical adjustments. The legs adjust independently, making the Angled Entry Ramp the perfect solution for uneven surfaces.

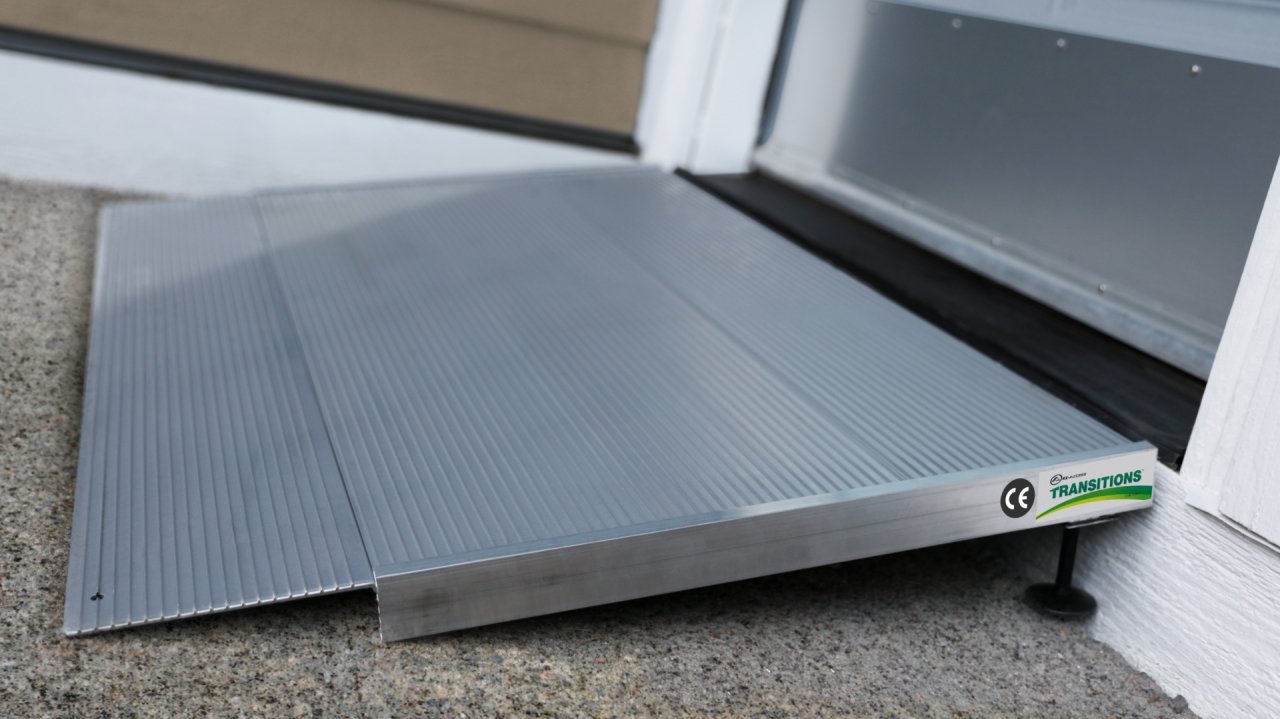

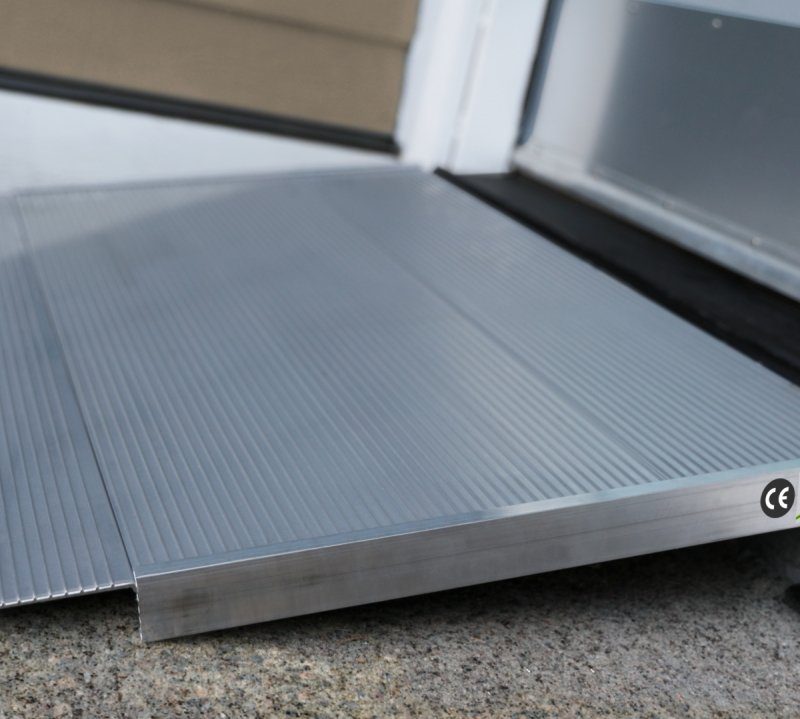

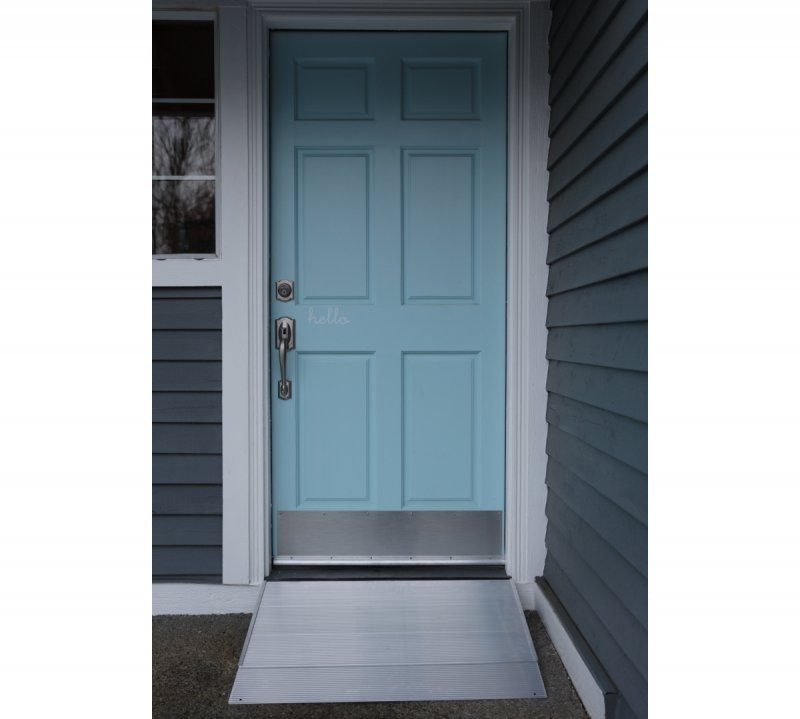

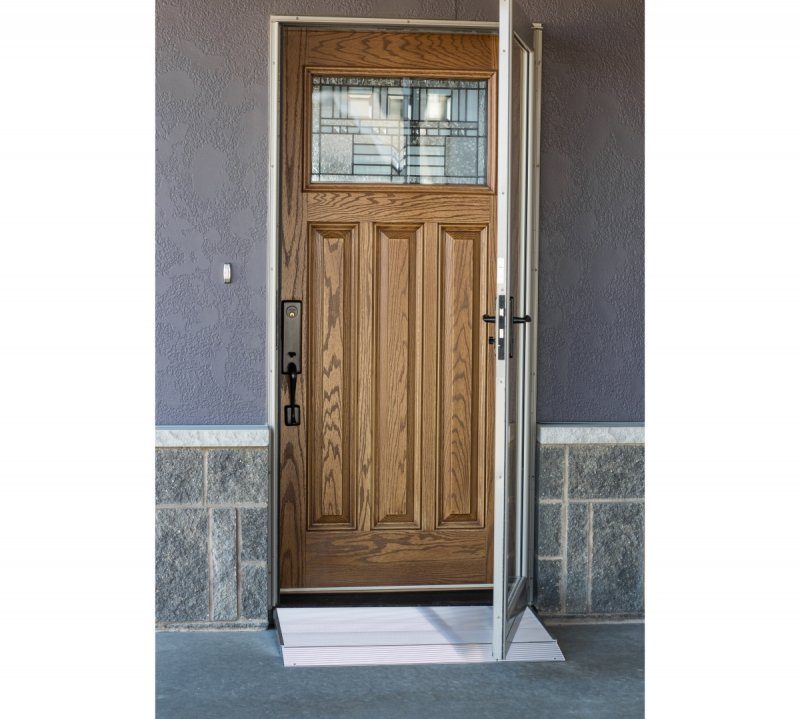

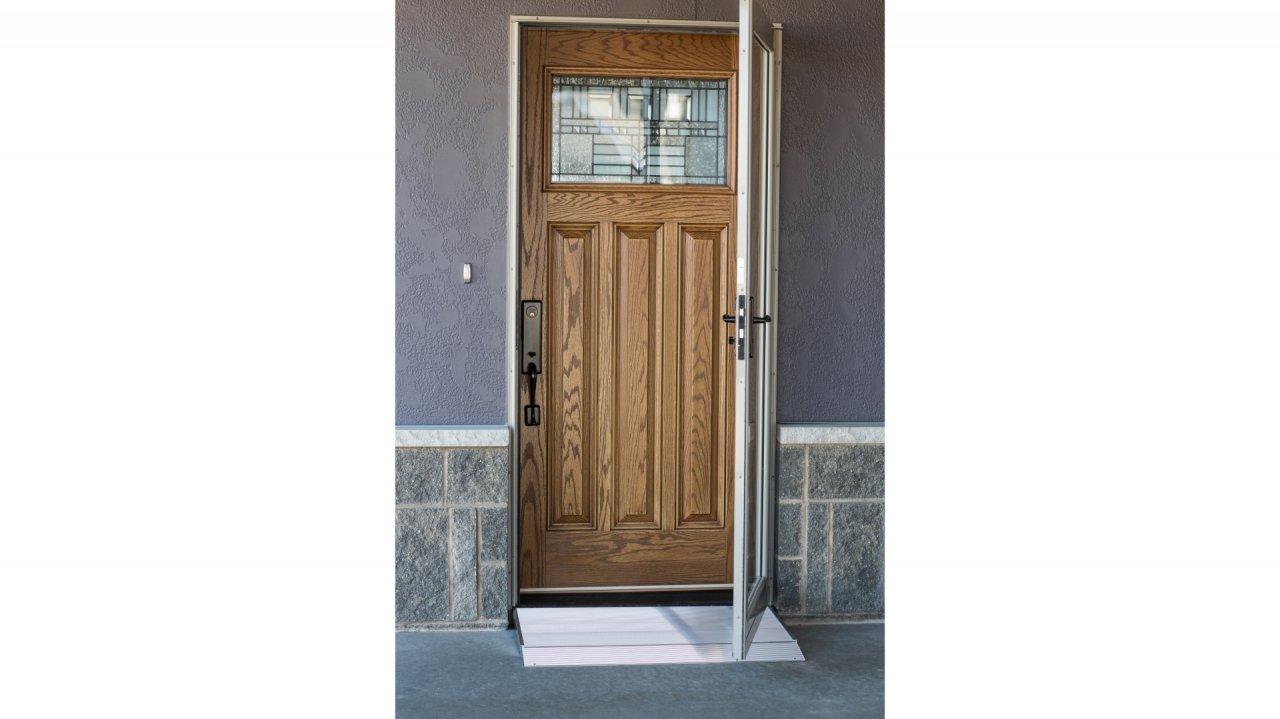

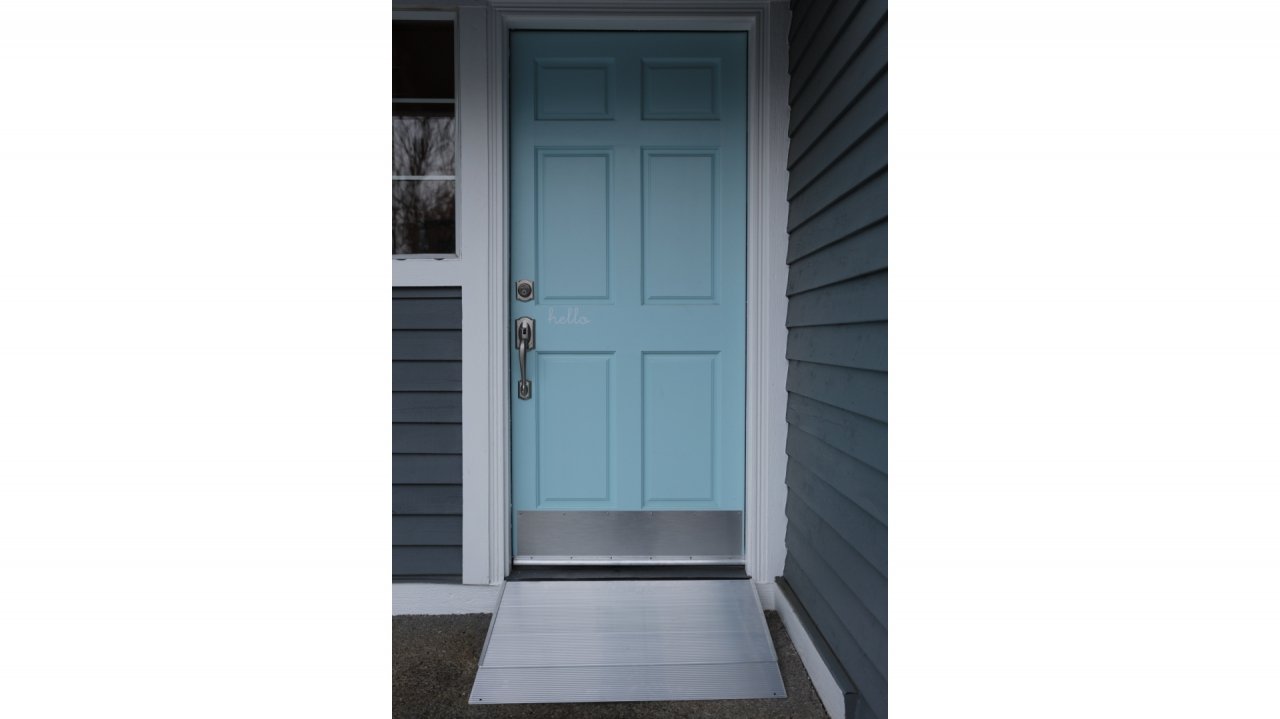

Angled Entry Ramp at door

HIGH-STRENGTH ALUMINUM MATERIALS

This ramp is made completely out of high-strength aluminum which will not rust or corrode over time.

PRE-DRILLED SLOTS

Holes are pre-drilled for anchoring. Hardware included.
Angled Entry Ramp side view

Specs

TAER 12

TAER 24


TAER 36

Slip-Resistant Surface

Overall Dimensions

11.877” x 36.25”
23.875” x 36.25”
35.904” x 36.25”
Height (Ramp Only)
1.362”
1.669″
3.282″
Usable Height Range W/ 1″ Swivel Feet*
1.92” to 2.958″
N/A
N/A
Usable Height Range W/ 1.5″ Swivel Feet*
N/A
2.154″ to 3.375″
N/A
Usable Height Range W/ 2.5″ Swivel Feet*
N/A
3.178″ to 4.361″
3.681″ to 5.836″
Weight**
5.15 lbs.
10.4 lbs.
15.15 lbs.
Weight Capacity
700 lbs.
700 lbs.
700 lbs.
For Wheelchairs & Scooters


NOTE: Weights and dimensions are approximate and subject to change.

*Consult your mobility equipment’s owner guide for the proper slope/incline. Never exceed its recommendations.

**Weights are approximate and may vary.

For additional specs and dimensions see “Documents”

Documents

Although it’s our intent to keep all documents current, some documents are subject to change and may take time to update. If you are unsure whether you have the most current revision or if your product is different, contact our technical support.

Videos

FAQ's

With the adjustable feet, what is the minimum and maximum height of threshold it can accommodate?

The TAER 12 height range is 1.92” to 2.958”. The TAER 24 comes with two different adjustable sized feet. The shorter set provide a height range of 2.154” to 3.375” and the taller ones provide a height range of 3.178” to 4.361”. The TAER 36 height range is 3.681” to 5.836”.

Does the plate at the bottom of the ramp move?

Yes, the TAER has an adjustable bottom transition plate so that it can provide smooth ramp-to-ground and ground-to-ramp transitions.

Does this ramp require assembly?

Yes, simply attach the two adjustable feet and set them to the necessary height.

Do the feet move?

Yes, the feet swivel, allowing this ramp to adapt to uneven surfaces.

How do you keep the ramp from moving?

There are pre-drilled holes for anchoring in the bottom transition plate and hardware is provided for drilling into a wood surface.
